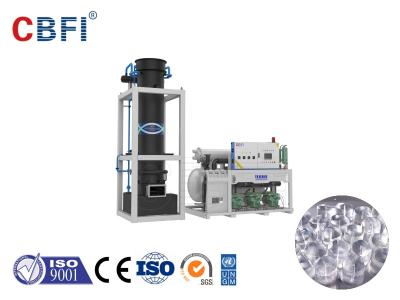

30 ton tube ice machine is very welcomed product in the TV series. Many large ice plants choose it because of the high cost performance. It is the largest freon refrigeration system tube ice machine you can find in the world. And larger capacity with ammonia refrigerant is also provided, contact us for more details.
Brand:
CBFIItem NO.:
TV300Shipping Port:
Guangzhou PortWarranty:
1 yearCBFI TV300 30 ton per 24h tube ice machine
Features of CBFI Tube Ice Machine
Because of the high cost performance, many large ice plants choose 30 tons tube ice machine. It is the largest freon refrigeration system tube ice machine. And larger capacity with ammonia refrigerant is also provided, now 30tons ice tube maker machine can provide freon refrigerant or ammonia refrigerant.
● Daily Production 30 ton 24 hrs
1. 3D design, convenient for container transportation, simple installation and maintenance.
2. The evaporator adopts stainless steel polyurethane foam insulation, and the pipeline adopts insulation treatment, which is more energy-saving and has a beautiful appearance.
3. The parts in contact with ice are made of food-grade high-quality 304 stainless steel to ensure ice safety and sanitation.
4. PLC intelligent control system, fully automated production, without manual operation.
5. Using automatic laser welding machine to weld, the welding spot is beautiful, no leakage is guaranteed, and the equipment failure rate is low.
6. The whole machine has passed CE certification, which has high security.
7. The special water system design ensures better ice quality, uniform thickness, transparency and purity.
8. Unique ice removal method, fast ice removal speed, less system impact, higher efficiency and safer.
9. It can be equipped with stainless steel spiral conveying ice storage hopper, manual or automatic packing system.
Machine Details
|
|
 |
|
|
|
|
 |
 |
 |
Parameters
| TV300 Tube Ice Machine Parameters | ||||
| Name | Unit | Parameter | ||
| Tube Diameter | mm | Φ22 | Φ28 | Φ35 |
| Bitzer Compressor Parameter | Model | 6FE-50*3 | ||
| Cooling Capacity（kW） | 243.3 | |||
| Power（kW） | 87.6 | |||
| Condenser | Heat Exchange（kW） | 400 | ||
| Condensing Temperature | Degree Celsius（℃） | 40 | ||
| Evaporating Temperature | Degree Celsius（℃） | -10 | ||
| Ambient Temperature | Degree Celsius（℃） | 25 | ||
| Water Temperature | Degree Celsius（℃） | 21 | ||
| Refrigerant | R507 | |||
| Voltage | V/P/HZ | 380/3/50 | ||
| Motor Power | Ice Cutting Motor（kW） | 1.5 | ||
| Recircling Pump（kW） | 4 | |||
| Cooling Tower | Power(kW) | 2.2 | ||
| Cooling Pump | Power | 5.5 | ||
| Water Cooling Machine Dimension | L*W*H(mm) |
3260*2200*2100 Compressor Unit 1800*1550*5566 Evaporator |
||
Quality Control
 |
 |
 |
|
|
|
|
 |
 |
 |
CV20000 industrial cube ice machine is a large-scale production of edible cube ice making equipment. The produced cube ice is clean, hygienic and crystal clear. It is widely used in hotels, bars, restaurants, convenience stores, cold drinks shops, etc. place. We have experienced team of R & D engineers,supply special size ince machines made as per request.

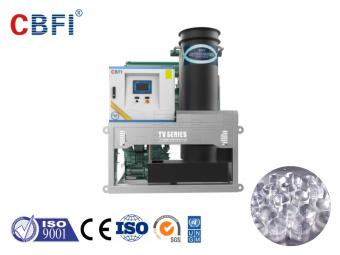

The low power consumption and convenience make 1 ton tube ice machine the very welcomed product in many countries. The power standard of the machine is able to be customized.
