CBFI 20 ton per 24h Tube Ice Machine

CV20000 industrial cube ice machine is a large-scale production of edible cube ice making equipment. The produced cube ice is clean, hygienic and crystal clear. It is widely used in hotels, bars, restaurants, convenience stores, cold drinks shops, etc. place. We have experienced team of R & D engineers,supply special size ince machines made as per request.

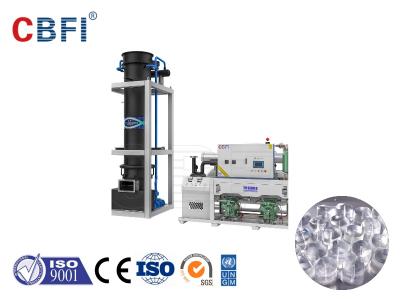

The low power consumption and convenience make 1 ton tube ice machine the very welcomed product in many countries. The power standard of the machine is able to be customized.

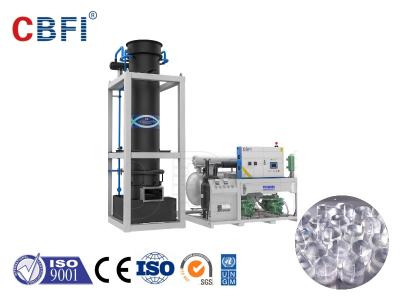

10 tons tube ice machine mean 10000kg daily capacity ice tube maker. CBFI provide 350kg-80tons tube ice machine.

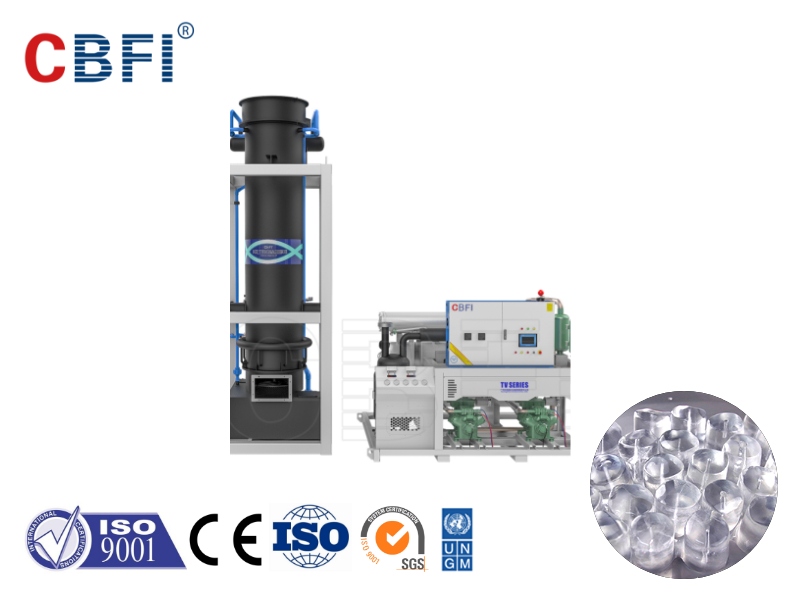

Looking for China best ice tube machine manufacturer? Choose CBFI TV150 15 Tons Per Day Tube Ice Machine. Check now!

30 ton tube ice machine is very welcomed product in the TV series. Many large ice plants choose it because of the high cost performance. It is the largest freon refrigeration system tube ice machine you can find in the world. And larger capacity with ammonia refrigerant is also provided, contact us for more details.

CBFI 40 Tons Per Day Ice Plate Making Machine  Plate ice machine is suitable for automatic ice production line. CBFI plate ice machine conducted technologies such as flat film heat exchange, double surface ice forming, S type refrigerant flow tunnels, recycle heat gas ice harvesting and etc. Through PLC concentrated control, we can easily operate. Multiple individual ice forming and harvesting shortened the ice making period. The machine is sustainable and can endure vibration and shocks. Plate Ice Machine Features During the ice cycle of fresh ice in the slab ice mechanism, the refrigerant vaporizes and absorbs heat after the expansion valve. Since the refrigerant flows through the honeycomb-shaped pipeline in the middle of the ice making plate, it can absorb the heat of the fresh water sprinkled on the ice making plate, so that the fresh water slowly freezes on the icing plate, and the principle of freezing at 0 ° C of the water is used. Because ice is a single ore, it cannot coexist with it. Water automatically removes impurities during the crystallization process. At this time, only fresh water freezes, impurities, air, etc. flow out with water, so the ice on the ice plate is clean and transparent. . The water is continuously sprinkled by the water pipe, and the ice is continuously thickened to a certain extent (can be freely set) and then automatically de-ice. De-icing is the use of warm water heated by the residual heat of the compressor on the inside of the icing plate to transfer the temperature to the ice on the surface of the icing plate. The ice melts and forms an isolation from the icing plate, and cannot be attached to the icing plate to achieve automatic de-icing.  ●  Daily Production 40 ton ●  Invention patent owned, the product conducts technologies such as flat film heat exchange, double surface ice forming, S type refrigerant flow tunnels, recycle heat gas ice harvesting and etc. ●  3D designed to ensure the container transportation. Easy for installation & maintaining ●  PLC intelligent controlled, full automatic production, need no human operation. Plate Ice Application Drink Cooling Food Processing Fishery Food Preservation Supermarket        Products Parameter HYF400 40 ton Plate Ice Machine Parameters Name Unit Parameter Bitzer Compressor Parameter Model 6FE-50*2 Cooling Capacity（kW） 83.3*2 Power（kW） 29.2*2 Condenser Model WN-80-77 Heat Exchange（kW） 280.4 Condensing Temperature Degree Celsius（℃） 40 Evaporating Temperature Degree Celsius（℃） -10 Ambient Temperature Degree Celsius（℃） 32 Water Temperature Degree Celsius（℃） 20 Refrigerant R507 Voltage V/P/HZ 380/3/50 Agitator Power（kW） 2.2 Cooling Tower Model LX-100 Power(kW) 2.2 Cooling Pump Model GD100-19A Power 5.5 Cooling Fan Power（kw） 2.2 Dimension L*W*H(mm) 4100*2250*2250 Weight kg 4650

CBFI 3 Tons Per Day Ice Plate Making Machine  Plate ice machine is suitable for automatic ice production line. CBFI plate ice machine conducted technologies such as flat film heat exchange, double surface ice forming, S type refrigerant flow tunnels, recycle heat gas ice harvesting and etc. Through PLC concentrated control, we can easily operate. Multiple individual ice forming and harvesting shortened the ice making period. The machine is sustainable and can endure vibration and shocks. Plate Ice Machine Features During the ice cycle of fresh ice in the slab ice mechanism, the refrigerant vaporizes and absorbs heat after the expansion valve. Since the refrigerant flows through the honeycomb-shaped pipeline in the middle of the ice making plate, it can absorb the heat of the fresh water sprinkled on the ice making plate, so that the fresh water slowly freezes on the icing plate, and the principle of freezing at 0 ° C of the water is used. Because ice is a single ore, it cannot coexist with it. Water automatically removes impurities during the crystallization process. At this time, only fresh water freezes, impurities, air, etc. flow out with water, so the ice on the ice plate is clean and transparent. . The water is continuously sprinkled by the water pipe, and the ice is continuously thickened to a certain extent (can be freely set) and then automatically de-ice. De-icing is the use of warm water heated by the residual heat of the compressor on the inside of the icing plate to transfer the temperature to the ice on the surface of the icing plate. The ice melts and forms an isolation from the icing plate, and cannot be attached to the icing plate to achieve automatic de-icing.  ●  Daily Production 3 ton ●  Invention patent owned, the product conducts technologies such as flat film heat exchange, double surface ice forming, S type refrigerant flow tunnels, recycle heat gas ice harvesting and etc. ●  3D designed to ensure the container transportation. Easy for installation & maintaining ●  PLC intelligent controlled, full automatic production, need no human operation. Plate Ice Application Drink Cooling Food Processing Fishery Food Preservation Supermarket        Products Parameter HYF30 3 tons Plate Ice Machine Parameters Name Unit Parameter Bitzer Compressor Parameter Model 4NES-14 Cooling Capacity（kW） 30.1 Power（kW） 10.58 Condenser Model WN-15 Heat Exchange（kW） 49.2 Condensing Temperature Degree Celsius（℃） 40 Evaporating Temperature Degree Celsius（℃） -10 Ambient Temperature Degree Celsius（℃） 32 Water Temperature Degree Celsius（℃） 20 Refrigerant R507 Voltage V/P/HZ 380/3/50 Agitator Power（kW） 0.75 Cooling Tower Model LX-20 Power(kW) 0.56 Cooling Pump Model GD50-17 Power 1.5 Cooling Fan Power（kw） 0.56 Dimension L*W*H(mm)  2100*1330*2200 Weight kg 1350

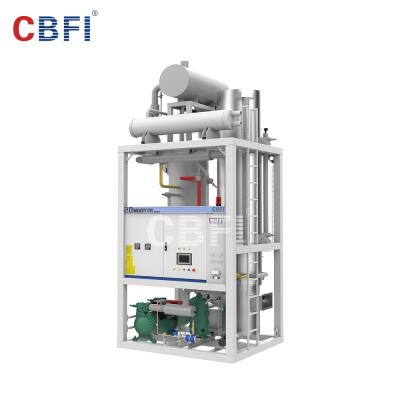

Next Generation of Ice Making: The Integrated Tube Ice Machine   The integrated tube ice machine is an innovative industrial ice-making equipment designed specifically for large-scale commercial ice block production environments. It adopts advanced international refrigeration technology and intelligent control systems, enabling fast and efficient production of edible ice blocks, while also featuring energy conservation, environmental friendliness, and ease of operation.     Why Choose CBFI® Ice Tube Machine Quick Installation Just connect water and electricity to produce. Reduces on-site installation complexity about save a week of installation and debugging time.   Steady Running Newly Upgraded Ice Cutting Mechanism. Scientifically designed speed and shock absorption ensure long-term stability even during high-speed operation.   High-Quality Tube Ice Extremely uniform minimal ice breakage. Uniform ice helps increase productivity and reduce losses.   Efficient Cooling Special layered design. High-precision intelligent mechanical weldingWelding process system.       Advantages of The CBFI Tube Ice Machine Space Saving Saves approximately40% space compared to a 30-ton split tube ice machine with the same configuration by CBFI. Compact design with a small footprint and low operational noise, suitable for various sizes of commercial spaces. Reduced floor space and saved freight.   Energy-saving Design   High-efficiency compressors and meticulously designed heat exchangers maximize energy usageefficiency. Continuousinvestment in research and optimization of technologies, including flat wall heat exchange and cyclic hot gas ice harvesting. Utilizesnewtype of environmentally friendly refrigerants with lower energy consumption. User Friendly Design   1. The equipment isequippedwith easy-to-use ladders for convenient daily inspection and maintenance by staff. 2. The layout of wires and pipelines is rational, with adequate protective measures in place to ensure operational safety while enhancing the equipment's aesthetics. Intelligent Touch Screen Interface   1. Smart System Simulation - Real-time visual monitoring of operations with immediate alerting in case of anomalies. 2. Intelligent Fault Diagnosis and Repair Guidance - Instant fault warnings and access to troubleshooting methods. 3. Comprehensive Safety Mechanism - Multiple automatic protection systems and foolproof design. 4. EU Certified Safety and Quality - Compliant with CE standards for electrical circuits and safety switches.       About CBFI CBFI® (Guangzhou Icesource Co., Ltd) is a globally recognized expert in the ice-making and quick-freezing cold storage industry, with over two decades of dedication. Equipped with multiple functional service teams, including professional consulting, order tracking, shipping, and dedicated after-sales engineering teams, we provide reliable ice-making and freezing solutions to food production enterprises worldwide, offering hassle-free one-stop service!
