CBFI 3 ton per 24h Block Ice Machine


  • Brand:

    CBFI
  • Item NO.:

    BBI30
  • Shipping Port:

    Guangzhou Port
  • Warranty:

    1 year
  • Product Details
  • video

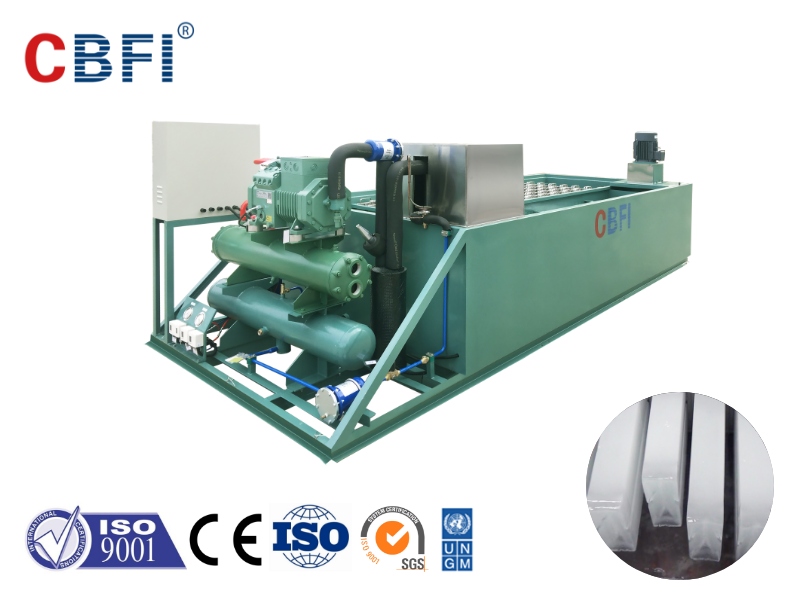

CBFI BBI30 3 ton per 24h block ice machine

CBFI BBI30 3 ton per 24h block ice machine


Features of CBFI Block Ice Machine:


1. Power saving and energy saving. Patented evaporator design improves ice making efficiency and reduces energy consumption.
2. The salt water pool is extremely resistant to corrosion. The surface of the salt water pool adopts anti-corrosion technology, two primers and one top coat, the paint surface is resistant to low temperature, long-term salt water immersion does not fall off, and the service life is more than 35% higher than similar products.
3. Customized ice molds of any size. The ice mold can be customized according to the needs of the local market.
4. Durable evaporator. Ultra-thick coil tube wall, up to 3mm thick, and the service life up to 20 years.
5. Large capacity reservoir. It can ensure that the ice machine is operated in a large temperature difference environment without liquid shock. It is the best product for compressor protection among similar products.


Machine Details


CBFI BBI30 3 ton block ice machine condenser tube
CBFI BBI30 3 ton block ice machine refrigerant tank


Parameters


BBI20 Block Ice Machine Parameters
Name Unit Parameter
Bitzer Compressor Parameter Model 4TES-9
Cooling Capacity(kW) 15.92
Power(kW) 6.62
Condenser Model WN-10
Heat Exchange(kW) 35.8
Condensing Temperature Degree Celsius(℃) 38
Evaporating Temperature Degree Celsius(℃) -18
Ambient Temperature Degree Celsius(℃) 32
Water Temperature Degree Celsius(℃) 20
Refrigerant R507
Voltage V/P/HZ 380/3/50
Agitator Power(kW) 2.2
Cooling Tower Model LX-15
Power(kW) 0.25
Cooling Pump Model GD50-17
Power 1.5
SS304 Ice Mold Dimension L*W*H(mm) Customized
Machine Dimension L*W*H(mm) Customized
Remarks Crane is not included.

Block Ice Making


CBFI BBI30 3 ton block ice machine right view
CBFI BBI30 3 ton block ice machine front view
CBFI BBI30 3 ton block ice machine block ice



CBFI BBI30 3 ton block ice machine ice mold
CBFI BBI30 3 ton block ice machine block ice
CBFI BBI30 3 ton block ice machine block ice


Quality Control


CBFI BBI30 3 ton block ice machine electrical box installation
CBFI BBI30 3 ton block ice machine compressor installation


CBFI BBI30 3 ton block ice machine ice mold cutting
CBFI BBI30 3 ton block ice machine condenser welding
