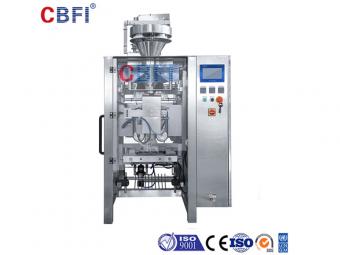

CBFI API Specs Automatic Ice Packing Machine
CBFI automatic ice packing machine is fast packing, saving time and manpower, mostly used in packing tube ice and cube ice. It is definitely the first choice for medium and large edible ice factory.
Connect full functions of delivery, weighing, filling, sealing, counting etc.
PE packaging - packaging machine using PE bag packaging, saving the cost of packaging bags, a roll of film can be made into 2000 bags
Packaging machine automatic bag making
High speed with stable sealing. It is up to 25bags/min
Stepless adjustment - the packaging speed is stepless adjustment, just adjust the cutting speed with the knob, the packaging speed will automatically change accordingly.
The replacement of the film is convenient - the packaging machine is convenient to replace the film, pull the film to the entrance of the film, press the button, the film is automatically installed.
Equipment investment cost can be recovered in less than on year
Packing process is sanitary to meet the food sanitation standard
Automatic edible ice plant to evaluate efficiency and sanitation.
Product Parameters
Automatic Packing Ice Machine MODEL API-100 Parameters
Capacity
10~25bags/min
Ice Weight
2~18kgs/bag
Film Material
LLDPE
Film Thickness
2~5kgs: 0.04mm minimum
5~15kgs: 0.06mm minimum
Bag sizes
Length: 400~800mm
Width: 300~380mm
Power Supply
380V-3P-50Hz, 4.37kW
Air Pressure
≥0.6MPa
Machine Weight
800kgs
Machine Size(L*W*H)
3350mm*1170mm*2250mm
Product Details
PLC Control
With system controller, the machine can be easily adjusted for different parameters as per requirement
Lifter: Convey ice automatically
Weigher: Easily changeable of weight without using scale
Plastice Films: Make bags automatically
FAQ
1、Q:How do I know whether I need an automatic packing ice machine?
A:If you have the following requirements, then you need the AIP100.
Better Packing Efficiency
More Clean Ice
Less Labor Cost
2、Can I use my unique bag design?
Yes, you can provide the design to us to make unique films for you or customize your own film at your country with our certain specs.
3、Is the automatic packing ice system a single machine?
No, it contains packing machine itself and lifting and conveying ancillaries.
