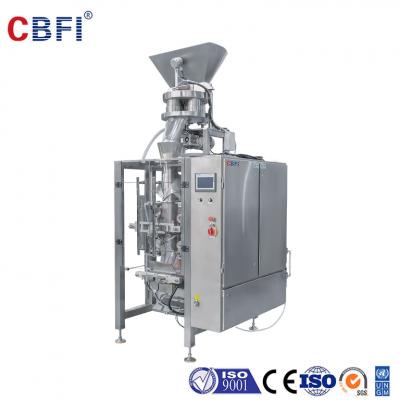

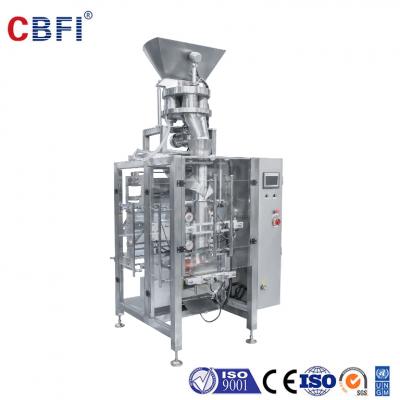

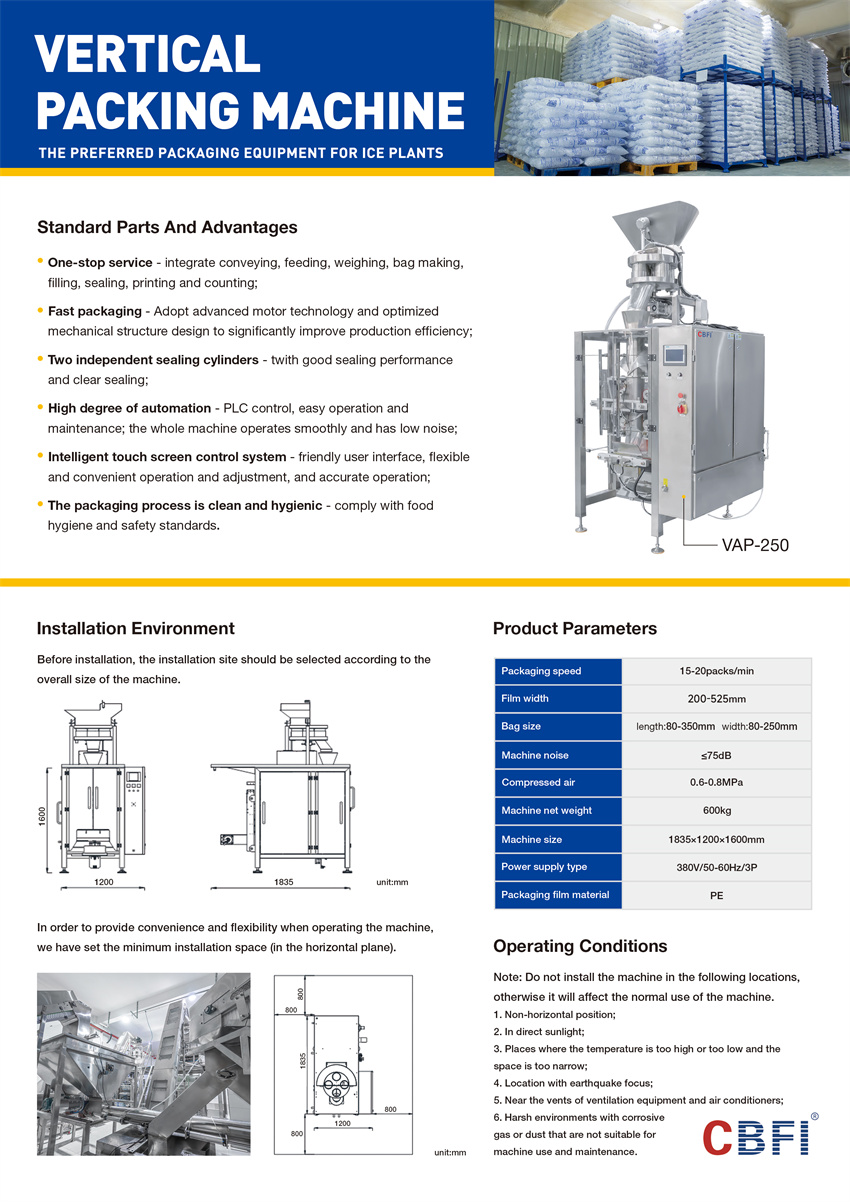

Vertical Ice Packing Machine VAP-250

CBFI API Specs Automatic Ice Packing Machine  CBFI automatic ice packing machine is fast packing, saving time and manpower, mostly used in packing tube ice and cube ice. It is definitely the first choice for medium and large edible ice factory. Connect full functions of delivery, weighing, filling, sealing, counting etc. PE packaging - packaging machine using PE bag packaging, saving the cost of packaging bags, a roll of film can be made into 2000 bags Packaging machine automatic bag making High speed with stable sealing. It is up to 25bags/min Stepless adjustment - the packaging speed is stepless adjustment, just adjust the cutting speed with the knob, the packaging speed will automatically change accordingly. The replacement of the film is convenient - the packaging machine is convenient to replace the film, pull the film to the entrance of the film, press the button, the film is automatically installed. Equipment investment cost can be recovered in less than on year Packing process is sanitary to meet the food sanitation standard Automatic edible ice plant to evaluate efficiency and sanitation. Product Parameters Automatic Packing Ice Machine MODEL API-100 Parameters Capacity 10~25bags/min Ice Weight 2~18kgs/bag Film Material LLDPE Film Thickness 2~5kgs: 0.04mm minimum 5~15kgs: 0.06mm minimum Bag sizes Length: 400~800mm Width: 300~380mm Power Supply 380V-3P-50Hz, 4.37kW Air Pressure ≥0.6MPa Machine Weight 800kgs Machine Size(L*W*H) 3350mm*1170mm*2250mm Product Details PLC Control With system controller, the machine can be easily adjusted for different parameters as per requirement Lifter: Convey ice automatically Weigher: Easily changeable of weight without using scale Plastice Films: Make bags automatically FAQ 1、Q:How do I know whether I need an automatic packing ice machine?       A:If you have the following requirements, then you need the AIP100.          Better Packing Efficiency          More Clean Ice          Less Labor Cost 2、Can I use my unique bag design?        Yes, you can provide the design to us to make unique films for you or customize your own film at your country with our certain specs. 3、Is the automatic packing ice system a single machine?       No, it contains packing machine itself and lifting and conveying ancillaries.

CBFI China Vertical Ice Packing Machine For Ice Business Main Features 1. Specially designed to pack 1kg-2kg ice with less gap. 2. Fully automatic with high efficient packing speed 30-40 bags per min. 3. Applied advanced heat sealing technology for packing ice product. Technical Highlights 1.Four-Axis control system enables highly synchronized motion. 2.Vacuum suction film pulling technology improves bag size accuracy. 3.Cooperative with ice bin, ice lifter, ice bag transfer belt to realize automatic ice packing.

CBFI Single Automatic Ice Ball Machine Ball ice maker, Ice ball carving machine, and ice sphere machine are the different name for the same machine. It is the new product provided by CBFI. This machine is able to carve pure ice block into ice balls. The ice ball is crystal clear and clean, which promotes luxury of whiskey or spirit. 1. Ice ball machine was Independent rearch and development by CBFI, which is exclusive in China. 2. High efficiency to make ice balls, up to 200 unites per hour.  3. Ice ball is perfect with 100% clear and roundess.  4. Ice ball size can be customize. Daily Production Daily production quantity of our ice ball machine could be 312 units, 624 units, 936 units, 1248 units, 2880 units Production Process  1.Pure Ice Making :Using CBFI Pure Ice Machine to make crystal clear pure ice. 2. Flatten Pure Ice: Carefully flattening the pure ice.  3. Ice Ball Carving: Carving the pure ice by using CBFI Ice Ball Carving Machine.       4.Packing Ice Ball: PET box packing.   5.Luxury Finish Packing: Luxury box finish packing. Production Detail Product Parameter Application area  Since the crystal ice sphere is high quality luxury ice type, we suggest use it with whiskey, brandy, cocktail, party, cold drinks etc high-end wine. Or use as hospitality promotion application, such as in ice bar, ice sculpture etc.

CBFI TV20 2 ton per 24h tube ice machine   Features of CBFI Tube Ice Machine 1. 3D design, convenient for container transportation, simple installation and maintenance. 2. The evaporator adopts stainless steel polyurethane foam insulation, and the pipeline adopts insulation treatment, which is more energy-saving and has a beautiful appearance. 3. The parts in contact with ice are made of food-grade high-quality 304 stainless steel to ensure ice safety and sanitation. 4. PLC intelligent control system, fully automated production, without manual operation. 5. Using automatic laser welding machine to weld, the welding spot is beautiful, no leakage is guaranteed, and the equipment failure rate is low. 6. The whole machine has passed CE certification, which has high security. 7. The special water system design ensures better ice quality, uniform thickness, transparency and purity. 8. Unique ice removal method, fast ice removal speed, less system impact, higher efficiency and safer. 9. It can be equipped with stainless steel spiral conveying ice storage hopper, manual or automatic packing system.     Machine Details         Parameters TV20 Tube Ice Machine Parameters Name Unit Parameter Tube Diameter mm Φ22 Φ28 Φ35 Bitzer Compressor Parameter Model 4NES-14 Cooling Capacity（kW） 29.3 Power（kW） 10 Condenser Heat Exchange（kW） 53 Condensing Temperature Degree Celsius（℃） 40 Evaporating Temperature Degree Celsius（℃） -10 Ambient Temperature Degree Celsius（℃） 25 Water Temperature Degree Celsius（℃） 21 Refrigerant   R507 Voltage V/P/HZ 380/3/50 Motor Power Ice Cutting Motor（kW） 0.75 Recircling Pump（kW） 0.75 Cooling Tower Power(kW) 0.25 Cooling Pump Power 1.1 Water Cooling Machine Dimension L*W*H(mm) 1500*1350*2077   Quality Control

CBFI 5 Tons Per Day Ice Plate Making Machine  Plate ice machine is suitable for automatic ice production line. CBFI plate ice machine conducted technologies such as flat film heat exchange, double surface ice forming, S type refrigerant flow tunnels, recycle heat gas ice harvesting and etc. Through PLC concentrated control, we can easily operate. Multiple individual ice forming and harvesting shortened the ice making period. The machine is sustainable and can endure vibration and shocks. Plate Ice Machine Features During the ice cycle of fresh ice in the slab ice mechanism, the refrigerant vaporizes and absorbs heat after the expansion valve. Since the refrigerant flows through the honeycomb-shaped pipeline in the middle of the ice making plate, it can absorb the heat of the fresh water sprinkled on the ice making plate, so that the fresh water slowly freezes on the icing plate, and the principle of freezing at 0 ° C of the water is used. Because ice is a single ore, it cannot coexist with it. Water automatically removes impurities during the crystallization process. At this time, only fresh water freezes, impurities, air, etc. flow out with water, so the ice on the ice plate is clean and transparent. . The water is continuously sprinkled by the water pipe, and the ice is continuously thickened to a certain extent (can be freely set) and then automatically de-ice. De-icing is the use of warm water heated by the residual heat of the compressor on the inside of the icing plate to transfer the temperature to the ice on the surface of the icing plate. The ice melts and forms an isolation from the icing plate, and cannot be attached to the icing plate to achieve automatic de-icing.  ●  Daily Production 5 ton ●  Invention patent owned, the product conducts technologies such as flat film heat exchange, double surface ice forming, S type refrigerant flow tunnels, recycle heat gas ice harvesting and etc. ●  3D designed to ensure the container transportation. Easy for installation & maintaining ●  PLC intelligent controlled, full automatic production, need no human operation. Plate Ice Application Drink Cooling Food Processing Fishery Food Preservation Supermarket        Products Parameter HYF100 10 tons Plate Ice Machine Parameters Name Unit Parameter Bitzer Compressor Parameter Model 4GE-23 Cooling Capacity（kW） 46.7 Power（kW） 16.52 Condenser Model WN-20 Heat Exchange（kW） 74.2 Condensing Temperature Degree Celsius（℃） 40 Evaporating Temperature Degree Celsius（℃） -10 Ambient Temperature Degree Celsius（℃） 32 Water Temperature Degree Celsius（℃） 20 Refrigerant R507 Voltage V/P/HZ 380/3/50 Agitator Power（kW） 1.1 Cooling Tower Model LX-30 Power(kW) 0.75 Cooling Pump Model GD65-19 Power 2.2 Cooling Fan Power（kw） 0.75 Dimension L*W*H(mm) 2500*1700*2100 Weight kg 1500

ABI300 30 Ton automatic ice block machine is the large daily capacity direct cooling ice block maker. CBFI can provide 1-30 tons automatic block ice maker.

CV3000 low power cube ice machine is a large-scale production of edible cube ice making equipment. The produced cube ice is clean, hygienic and crystal clear. It is widely used in hotels, bars, restaurants, convenience stores, cold drinks shops, etc. place. We have experienced team of R & D engineers,supply special size ince machines made as per request.
