BF1000 industrial flake ice machine can produce dry, loose white flake ice with a thickness of 1.5-2.2m and a diameter of 12-45mm. The flake ice machine has excellent refrigeration effect, has the characteristics of large refrigeration capacity and rapid ice making, and is widely used in catering and supermarkets, fishery preservation, food processing, concrete cooling and other fields.
We have experienced team of R & D engineers, supply special size ince machines made as per request.
Item NO.:
BF1000Shipping Port:
Guangzhou PortWarranty:

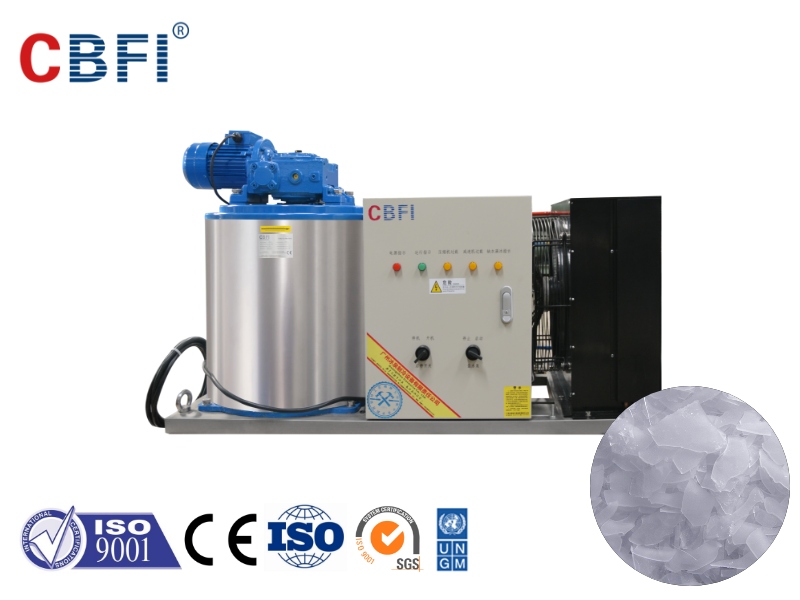

1 yearCBFI BF1000 1 ton per 24h flake ice machine
Features of CBFI Flake Ice Machine
1 ton 24 hrs flake ice machine BF1000 is equipped with air condenser or water condenser. Air cooled flake ice machine is welcomed in areas that lack of water. The only thing is that you need to ensure the good ventilation. This size of machine is suitable for supermarket, vege market, fish market, or many other places that small amount of ice is needed. The machine is capable of making about 42 kg every hour, which is about 93 lbs.
Daily Capacity: 1 ton 24 hrs
1. International brand compressors. Original authentic, refurbished machines and counterfeit machines are rejected. The compressor has high working efficiency and is durable and not easily damaged.
2. Vertical evaporator, ice scraper with imported material. The inner wall of the evaporator and the ice scraper are extremely wear-resistant, avoiding problems such as poor ice scraping.
3. Fully automated ice production. Turn on the power and water source and turn on the equipment to continuously produce ice.
4. The operation is simple and convenient. Touch screen operation, operation keys are clearly marked, easy to learn, and very simple to use.
5. Small footprint. The 3D three-dimensional design fully optimizes the pipeline and component layout and reduces the land occupation.
Machine Details
 |
 |
|
|
|
 |
 |
Parameters
| BF1000 Flake Ice Machine Parameters | ||
| Name | Unit | Parameter |
| Bitzer Compressor Parameter | Model | 4NES-14 |
| Cooling Capacity（kW） | 19.83 | |
| Power（kW） | 8.45 | |
| Condenser | Model | WN-15 |
| Heat Exchange（kW） | 49.2 | |
| Condensing Temperature | Degree Celsius（℃） | 40 |
| Evaporating Temperature | Degree Celsius（℃） | -20 |
| Ambient Temperature | Degree Celsius（℃） | 32 |
| Water Temperature | Degree Celsius（℃） | 20 |
| Refrigerant | R507 | |
| Voltage | V/P/HZ | 380/3/50 |
| Evaporator | Reducer Power（kw） | 0.37 |
| Circulating Pump Power（kw） | 0.12 | |
| Brine Pump Power（kw） | 9 | |
| Cooling Tower | Model | LX-15 |
| Power(kW) | 0.37 | |
| Cooling Pump | Model | GD40-20 |
| Power | 1.5 | |
| Machine Dimension(Water Cooling) | L*W*H(mm) |
1500*1250*1260 |
Quality Control
 |
 |
|
|
|
 |
 |
BF3000 industrial flake ice machine can produce dry, loose white flake ice with a thickness of 1.5-2.2m and a diameter of 12-45mm. The flake ice machine has excellent refrigeration effect, has the characteristics of large refrigeration capacity and rapid ice making, and is widely used in catering and supermarkets, fishery preservation, food processing, concrete cooling and other fields. We have experienced team of R & D engineers, supply special size ince machines made as per request.
BF5000 industrial flake ice machine can produce dry, loose white flake ice with a thickness of 1.5-2.2m and a diameter of 12-45mm. The flake ice machine has excellent refrigeration effect, has the characteristics of large refrigeration capacity and rapid ice making, and is widely used in catering and supermarkets, fishery preservation, food processing, concrete cooling and other fields. We have experienced team of R & D engineers, supply special size ince machines made as per request.
BF10000 industrial flake ice machine can produce dry, loose white flake ice with a thickness of 1.5-2.2m and a diameter of 12-45mm. The flake ice machine has excellent refrigeration effect, has the characteristics of large refrigeration capacity and rapid ice making, and is widely used in catering and supermarkets, fishery preservation, food processing, concrete cooling and other fields. We have experienced team of R & D engineers, supply special size ince machines made as per request.
15 tons 24 hrs flake ice machine BF15000 is very suitable for fresh fish cooling. Our machine is very welcomed in aquatic product processing plant. Flake ice is soft and thin, and do no damage to the skin of the fish. We have experienced team of R & D engineers, supply special size ince machines made as per request.
BF20000 industrial flake ice machine can produce dry, loose white flake ice with a thickness of 1.5-2.2m and a diameter of 12-45mm. The flake ice machine has excellent refrigeration effect, has the characteristics of large refrigeration capacity and rapid ice making, and is widely used in catering and supermarkets, fishery preservation, food processing, concrete cooling and other fields. We have experienced team of R & D engineers, supply special size ince machines made as per request.
BF2000 industrial flake ice machine can produce dry, loose white flake ice with a thickness of 1.5-2.2m and a diameter of 12-45mm. The flake ice machine has excellent refrigeration effect, has the characteristics of large refrigeration capacity and rapid ice making, and is widely used in catering and supermarkets, fishery preservation, food processing, concrete cooling and other fields. We have experienced team of R & D engineers, supply special size ince machines made as per request.
BF30000 industrial flake ice machine can produce dry, loose white flake ice with a thickness of 1.5-2.2m and a diameter of 12-45mm. The flake ice machine has excellent refrigeration effect, has the characteristics of large refrigeration capacity and rapid ice making, and is widely used in catering and supermarkets, fishery preservation, food processing, concrete cooling and other fields.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
