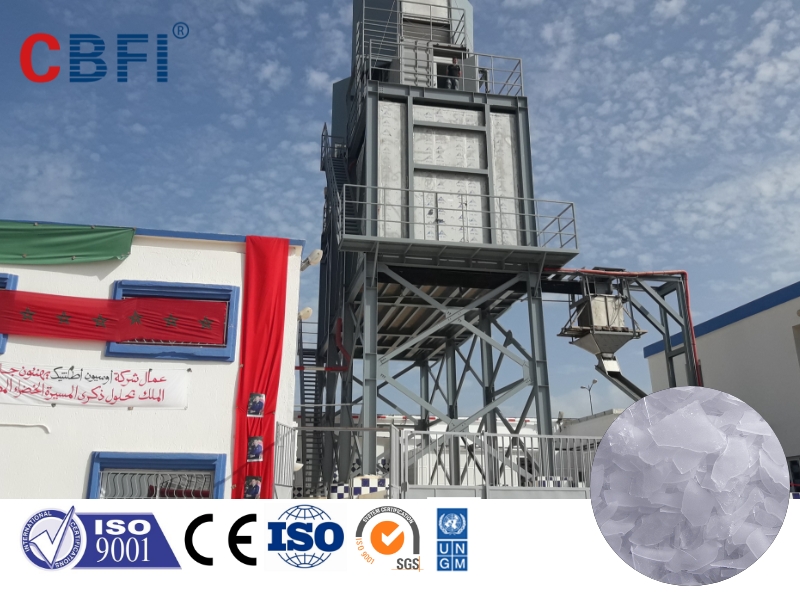

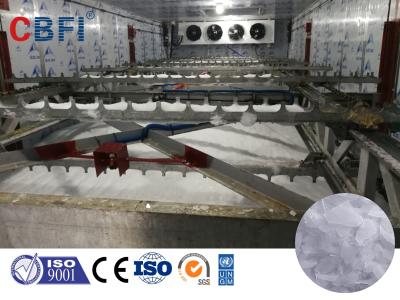

The ice rake system is generally used in conjunction with ice making equipment and installed in the ice storage cold storage. It can effectively use space to store ice. When a large amount of ice is needed in a short time, the ice storage cold storage can automatically deliver ice to meet the demand for ice.
Main Features
1. The ice rake machine adopts modular design, which is easy to assemble and maintain; the parts are processed by CNC machine tools with high precision and avoid welding defects.
2. Using high-precision bearings imported from Japan, the mechanism runs smoothly and has long service life.
3. One key to start the ice storage mode. After the ice cubes fall into the ice storage, the ice rake automatically runs according to the signal instructions provided by the sensor, and automatically stops when the ice storage reaches the maximum.
4. One-button start of the ice release mode, the ice blocking door opens automatically, the ice rake runs automatically according to the signal instruction provided by the sensor, and automatically stops after the ice output is completed, and the ice blocking door returns to its position.
5. Smart electric control screen, simple and easy to use.
6. Monitoring equipment is installed in the cold storage, which can check the working conditions of the equipment in real time, which is convenient for maintenance and management and safe production.
Ice rake system maintenance supplement
Before starting, the total power switch and control power switch must be turned on for more than 8 hours. The oil heater will heat the compressor oil to 45-50 ° C to allow the refrigerant in the compressor oil to be fully gasified to prevent machine wear or liquid shock to the compressor to affect the service life of the compressor.Especially after oil replacement or power-off time is relatively long case, before starting the unit must preheat the compressor oil.
As the air compressor running, the process of inhalation of air into the air tank,the water residue in atmosphere get in the gas tank will lead to reduced storage capacity of gas. Therefore, we need to unscrew the drain at the bottom of the tank every week. Note that we need to drain the tank when it is necessary to cut off power for the air compressor and relived the gas tank. After draining the water, we need to close the tank drain valve and the relief valve to reconnect power for the air compressor. And after air compressor fulfilled with gas, we can start harvesting ice.Otherwise, it is easy to lead to lift the door open for too long, triggering the unit to enhance the door limit switch protection alarm.
The ice rake system requires regular maintenance, including ice rake (ice raketrack, rotating bearing, turntable and chain, etc.) and lifting devices (lifting wire ropeand chain) need to be regularly lubricated with oil. Otherwise, these devices wearmore seriously, greatly reduced the service life.
During the process of making and harvesting ice, we must pay attention towhether there is deformation of ice rake. If the ice rake deformation is serious, pleasestop the machine running, remove the ice rake deformation failure, replace the newice rake.
Check the ice rake is deformed, if the ice rake has been deformed, please identifythe cause of ice rake deformation, remove the ice rake deformation failure. If the icerake is serious, replace the new ice rake.

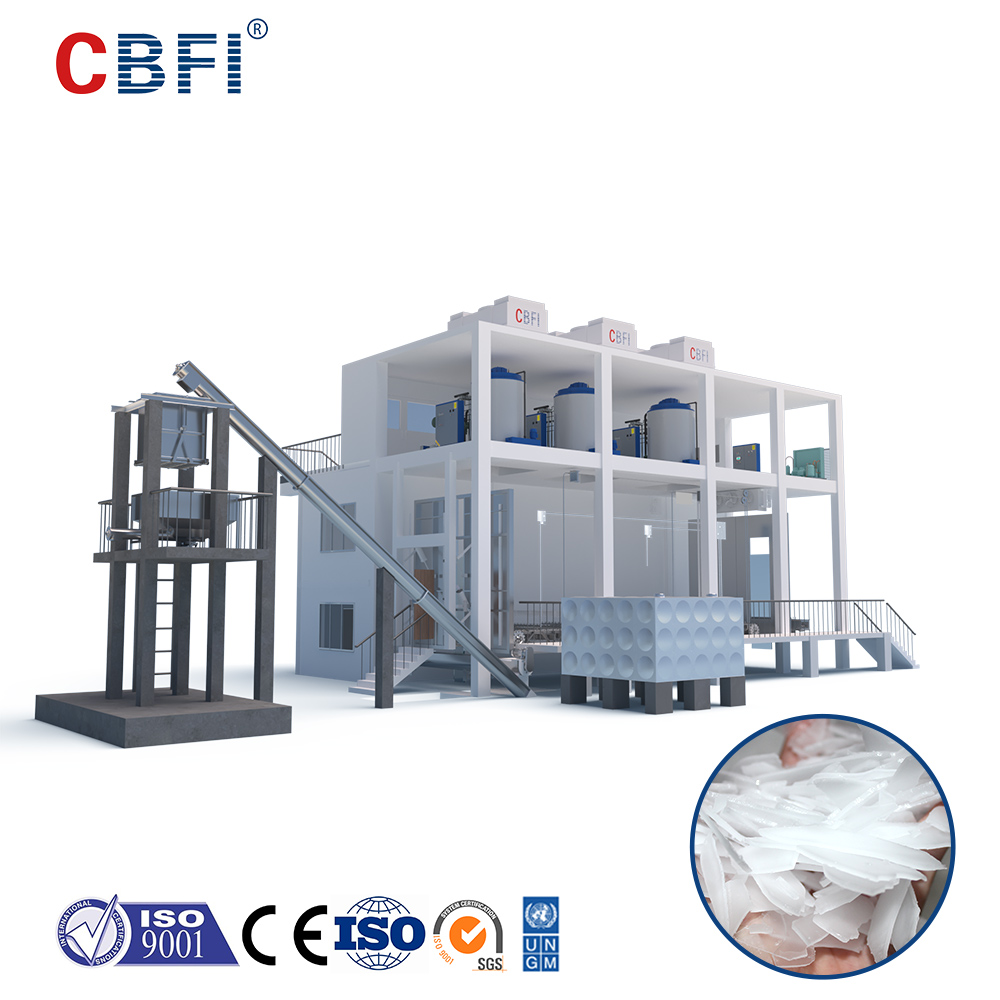

BF3000 industrial flake ice machine can produce dry, loose white flake ice with a thickness of 1.5-2.2m and a diameter of 12-45mm. The flake ice machine has excellent refrigeration effect, has the characteristics of large refrigeration capacity and rapid ice making, and is widely used in catering and supermarkets, fishery preservation, food processing, concrete cooling and other fields. We have experienced team of R & D engineers, supply special size ince machines made as per request.
BF5000 industrial flake ice machine can produce dry, loose white flake ice with a thickness of 1.5-2.2m and a diameter of 12-45mm. The flake ice machine has excellent refrigeration effect, has the characteristics of large refrigeration capacity and rapid ice making, and is widely used in catering and supermarkets, fishery preservation, food processing, concrete cooling and other fields. We have experienced team of R & D engineers, supply special size ince machines made as per request.
BF10000 industrial flake ice machine can produce dry, loose white flake ice with a thickness of 1.5-2.2m and a diameter of 12-45mm. The flake ice machine has excellent refrigeration effect, has the characteristics of large refrigeration capacity and rapid ice making, and is widely used in catering and supermarkets, fishery preservation, food processing, concrete cooling and other fields. We have experienced team of R & D engineers, supply special size ince machines made as per request.
15 tons 24 hrs flake ice machine BF15000 is very suitable for fresh fish cooling. Our machine is very welcomed in aquatic product processing plant. Flake ice is soft and thin, and do no damage to the skin of the fish. We have experienced team of R & D engineers, supply special size ince machines made as per request.
BF20000 industrial flake ice machine can produce dry, loose white flake ice with a thickness of 1.5-2.2m and a diameter of 12-45mm. The flake ice machine has excellent refrigeration effect, has the characteristics of large refrigeration capacity and rapid ice making, and is widely used in catering and supermarkets, fishery preservation, food processing, concrete cooling and other fields. We have experienced team of R & D engineers, supply special size ince machines made as per request.
BF2000 industrial flake ice machine can produce dry, loose white flake ice with a thickness of 1.5-2.2m and a diameter of 12-45mm. The flake ice machine has excellent refrigeration effect, has the characteristics of large refrigeration capacity and rapid ice making, and is widely used in catering and supermarkets, fishery preservation, food processing, concrete cooling and other fields. We have experienced team of R & D engineers, supply special size ince machines made as per request.
BF1000 industrial flake ice machine can produce dry, loose white flake ice with a thickness of 1.5-2.2m and a diameter of 12-45mm. The flake ice machine has excellent refrigeration effect, has the characteristics of large refrigeration capacity and rapid ice making, and is widely used in catering and supermarkets, fishery preservation, food processing, concrete cooling and other fields. We have experienced team of R & D engineers, supply special size ince machines made as per request.
BF30000 industrial flake ice machine can produce dry, loose white flake ice with a thickness of 1.5-2.2m and a diameter of 12-45mm. The flake ice machine has excellent refrigeration effect, has the characteristics of large refrigeration capacity and rapid ice making, and is widely used in catering and supermarkets, fishery preservation, food processing, concrete cooling and other fields.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
