Tube Ice Machine
A tube ice machine is a type of ice maker. It is named because the shape of the ice cubes produced is a hollow tube with irregular length. The inner hole is cylindrical hollow tube ice with an inner hole of 5mm to 15mm, and the length is between 25mm and 42mm. There are various sizes to choose from. The outer diameters are: 22, 29, 32, 35mm, etc. The name of the ice cubes produced is tube ice. The contact area is the smallest among the existing ice types in the market, and the melting resistance is the best. It is suitable for beverage preparation, decoration, food preservation, etc., so most of them are edible ice.
Tube Ice Specifications
Tube ice is a relatively regular hollow cylindrical shape, the outer diameter is divided into four specifications: 22, 29, 32mm, 35mm, and the height varies from 25 to 60mm. The diameter of the inner hole in the middle can be adjusted according to the time of ice making, generally 5 to 15mm. between. Ice cubes are thick, transparent, beautiful, have a long storage period, are not easy to melt, and have good air permeability. Daily consumption, preservation of vegetables, preservation of fishery and aquatic products, etc.
Classification and structure
Classification
The tube ice machine can be divided into two categories: small tube ice machine and large tube ice machine according to the daily output (according to the international standard working conditions: dry bulb temperature 33C, inlet water temperature 20C.). The daily ice output of small tube ice machines ranges from 1 ton to 8 tons, and most of them are of single structure. The daily ice output of large tube ice machines ranges from 10 tons to up to 60 tons. Most of them are composite structures and need to be equipped with cooling towers.
structure

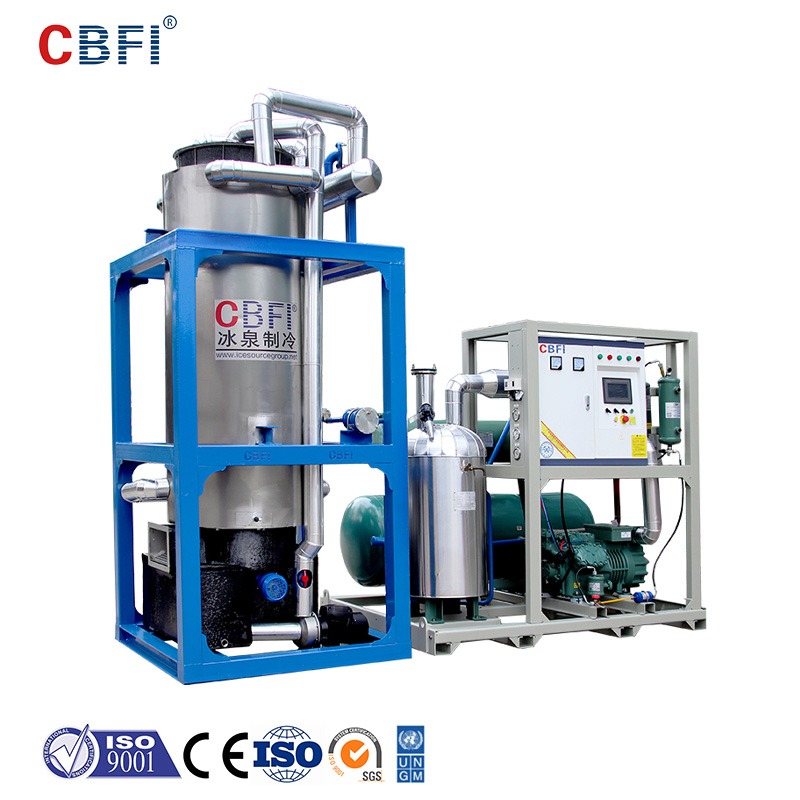

The structure of the tube ice machine mainly includes the evaporator, the condenser, the water storage tank, the compressor, and the liquid storage. Among them, the evaporator has the most complex structure, the highest precision requirements, and the most difficult production. Therefore, there are only a few large-scale industrial ice machine companies in the world that have the ability to develop and produce them.
Application field
Edible tube ice is mainly used in beverage cooling, food preservation, fishing boat and aquatic product preservation, laboratory and medical applications, etc.
