CBFI Flake Ice Raking System Installation and Commissioning

The installation and commissioning of a CBFI Flake Ice Raking System play a crucial role in ensuring the efficient operation of a flake ice plant. The system is designed to improve the ice production process, enabling optimal ice harvesting from the flake ice generator and smooth delivery of ice for various applications such as food processing, cooling, and industrial uses. Below, we’ll outline the key steps involved in installing and commissioning this system.

Installation of the CBFI Flake Ice Raking System

Before starting the installation, ensure that the flake ice maker machine and its associated components, including the ice rake system, are properly delivered and inspected. All parts should be accounted for and free of damage. The installation of the CBFI Flake Ice Raking System should be performed by experienced technicians to ensure proper setup and avoid operational issues.

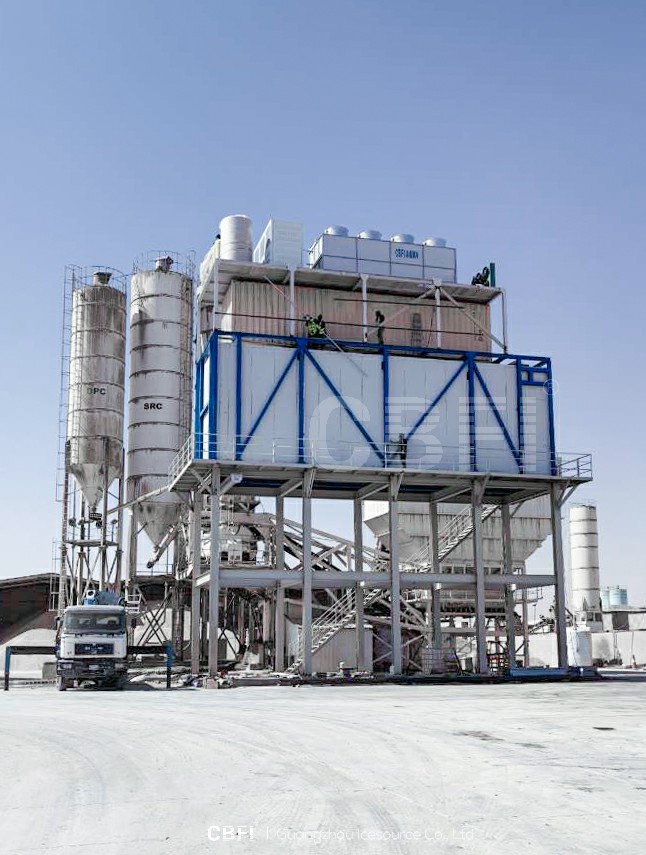

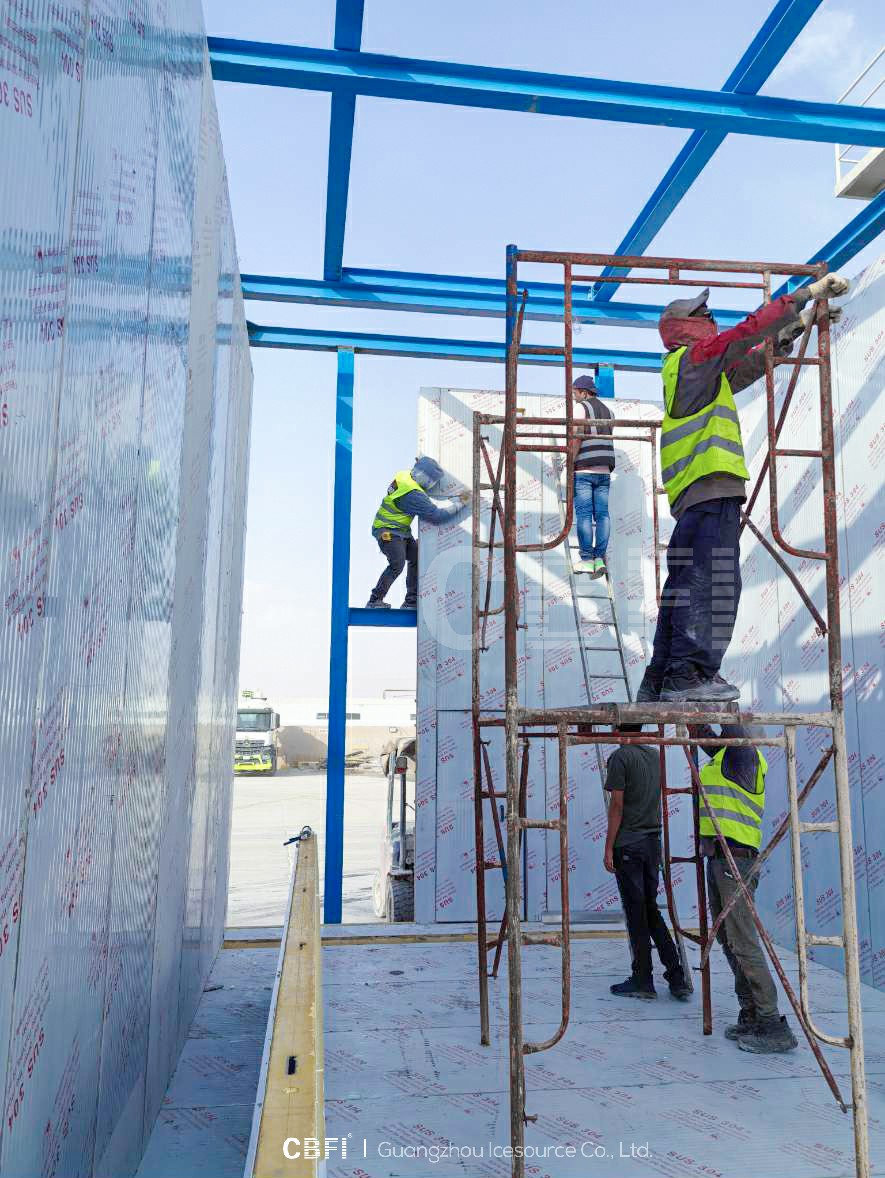

1. Site Preparation: The first step is preparing the site where the flake ice plant will be installed. This includes ensuring that there is sufficient space for the flake ice generator and the raking system. The area should be clean, dry, and have access to electricity and water supply.
2. Placement of the Flake Ice Generator: The flake ice maker machine should be placed in a location that allows easy access for maintenance and operation. Ensure that the generator is level and securely anchored to the foundation.

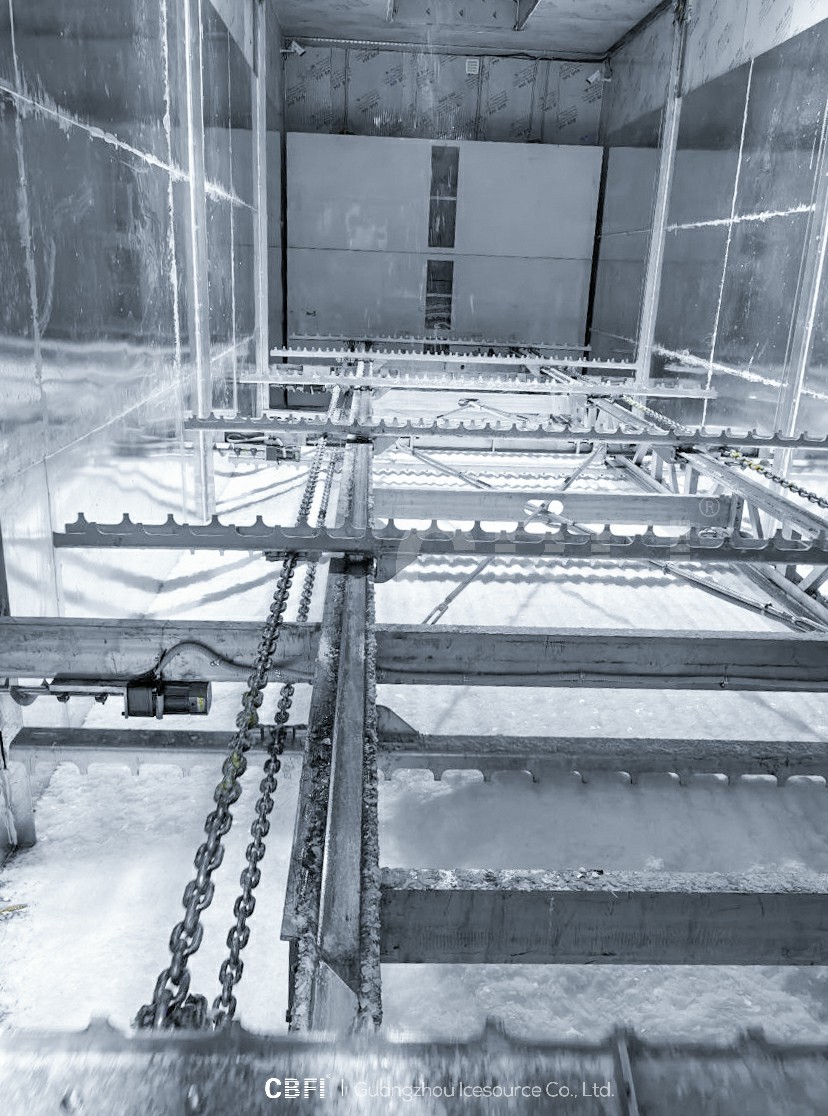

3. Installation of the Raking System: The ice raking system consists of rotating rakes that harvest the ice produced by the flake ice generator. It is important to ensure that the rakes are properly aligned with the ice production surface to ensure uniform ice harvesting. Attach the rake system to the generator following the manufacturer's guidelines.

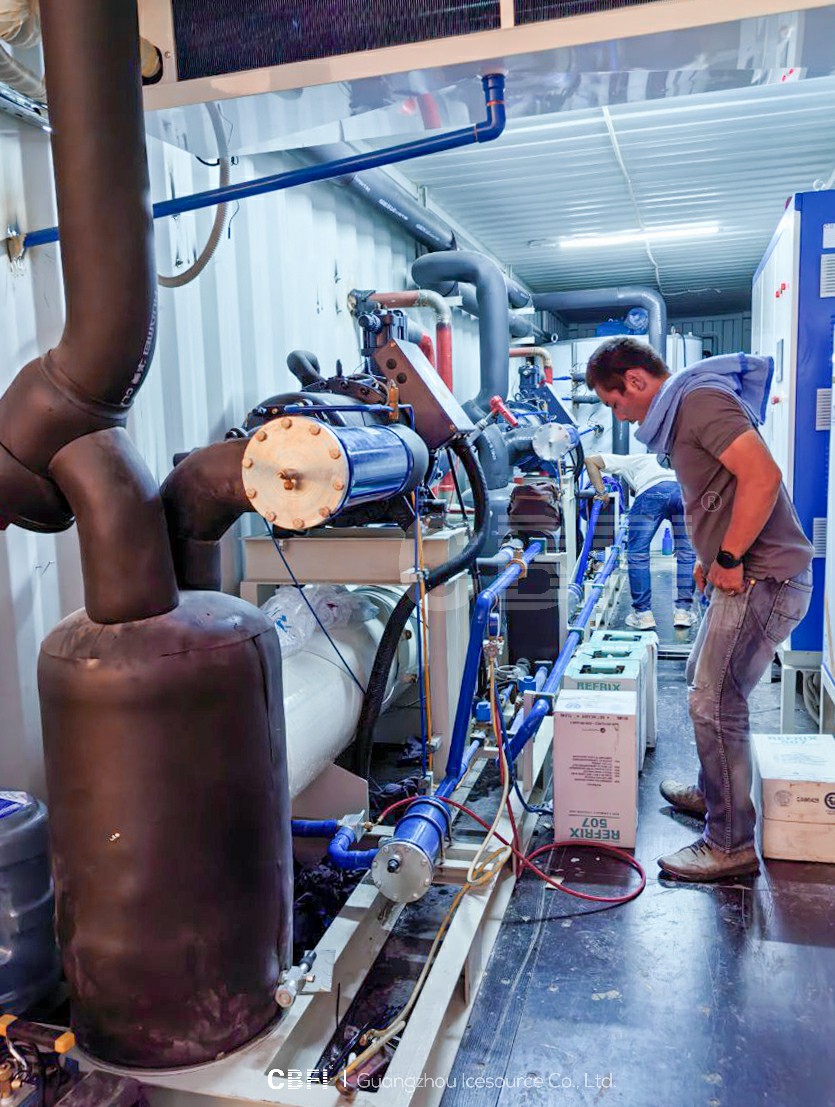

4. Connecting Piping and Electrical Systems: Connect the necessary water and refrigerant piping to the flake ice maker machine. Ensure that all connections are tightly sealed to avoid leaks. Electrical connections must be made as per the specifications in the user manual, and the system should be connected to the main power supply.

Commissioning the CBFI Flake Ice Raking System

After completing the installation, the system needs to be commissioned to ensure that it operates as expected. The commissioning process typically includes the following steps:

1. Power-On Check: First, power on the system and check for any error messages or alerts. Ensure that all components, including the flake ice generator and the raking mechanism, are receiving power.
2. System Initialization: Initialize the flake ice maker machine by setting the desired ice production parameters. The temperature, water flow, and ice thickness should be set according to the specific requirements of the plant.
3. Testing the Raking System: The ice raking system should be tested to ensure that it rotates smoothly and evenly. The rakes should not be obstructed, and they must collect ice uniformly from the surface of the generator. Watch for any unusual noise or vibrations, as these may indicate misalignment or mechanical issues.
4. Ice Harvesting Efficiency: Monitor the ice harvesting process to ensure that the flake ice raking system is efficiently removing ice from the generator. Ice should be harvested at the correct intervals and stored in the appropriate containers or conveyors for transport.
5. System Calibration: Make any necessary adjustments to the system for optimal ice production and quality. This may involve fine-tuning the water flow, refrigerant pressure, or the rake speed to ensure smooth and efficient operation.
6. Final Inspection: Perform a final inspection to ensure that all components are functioning as expected. Check for leaks, loose connections, and any unusual behavior in the raking system or generator. Once everything is verified, the system can be put into regular operation.

Conclusion

Proper installation and commissioning of the CBFI Flake Ice Raking System are essential to achieving reliable and high-quality ice production in a flake ice plant. With the right setup and thorough testing, the flake ice maker machine will operate efficiently, delivering the required amount of ice for various industrial and commercial purposes. Regular maintenance and periodic checks will ensure that the system continues to perform optimally over its lifespan.
