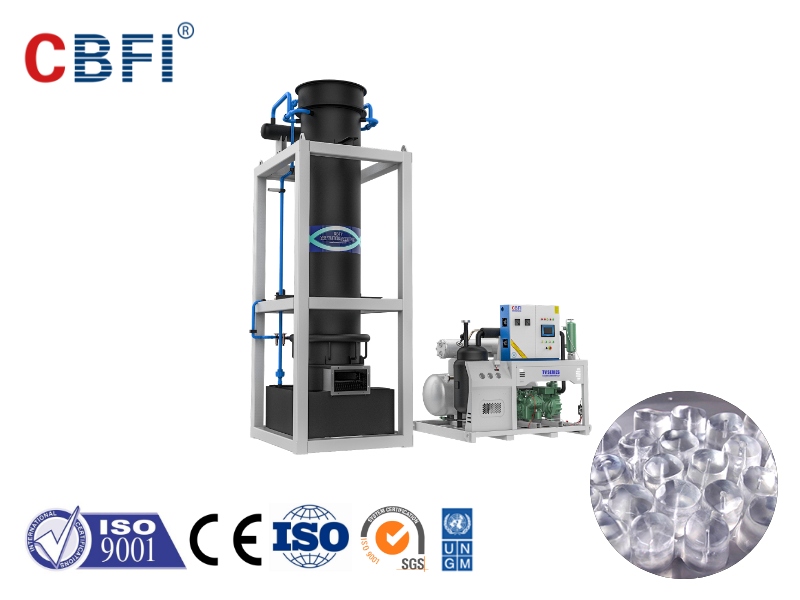

The structure of the tube ice making machine mainly includes the evaporator, the condenser, the water storage tank, the compressor, and the liquid storage. Among them, the evaporator has the most complex structure, the highest precision requirements, and the most difficult production. Therefore, there are only a few large-scale industrial ice machine companies in the world that are capable of developing and producing them.

The principle of tube ice maker machine

The ice part of the large tube ice maker is an evaporator, and the evaporator is composed of many vertical parallel steel pipes. The deflector at the top of the evaporator sprays the water evenly into each steel pipe in a spiral fashion. The excess water is collected in the bottom tank and pumped back to the evaporator by the pump. Refrigerant flows in the outer space of the steel pipe and exchanges heat with the water in the pipe, and the water in the pipe gradually cools down and cools into ice. When the thickness of the tube ice reaches the desired value, the water automatically stops flowing. The hot refrigerant gas will enter the evaporator and melt the tube ice. When the tube ice falls, the ice cutting mechanism operates to cut the tube ice to the set size.

Tube Ice Machine Features

1、Pre-Purify patented water purification technology, the tube ice produced can be eaten directly.

2、The evaporator is made of high-quality stainless steel 304 and other materials to meet international hygiene standards.

3、The machine adopts integrated design, compact structure, easy installation and use.

4、PLC computer module, the ice making process is fully automated.

International Brand - CBFI

CBFI R&D Freon System Tube Ice Machine(1-30tons daily capacity) and Ammonia System Tube Ice Machine(10-80tons daily capacity) .The tube ice machine is a mechanical device for producing tube ice. It has a hollow or solid cylinder that is widely used for beverage cooling in cafes, bars, restaurants and hotels.

For more than a decade, we have been committed to the R&D and manufacturing of cbfi ice machine for many years, and we are fully confident to provide you with the best tube ice equipment solutions.

The tube ice machine is an ice making machine. It is named for its ability to produce hollow ice of irregular length. The outer diameter of the ice tube is φ22mm, φ28mm, φ35mm, etc. and the length is between 25~45mm, and the inner diameter can be adjusted during the ice forming process usually between φ5~10mm.

The ice tube is thick and crystal clear, and it takes a long time to melt or store. The gas permeability is good so it is widely used in daily food, fruit and vegetable preservation, aquatic products preservation, etc.

CBFI® Tube Ice Machine R&D History and Certificates

1. Started tube ice machine production in 2011.

2. In 2015, 20 tons Freon tube ice machine was successfully developed

3. In 2019, Large Ammonia Tube Ice Machine

CBFI has CE certificate for tube ice machine, and three inventional patents including tube ice making machine itself, a tube ice cutter, and a new kind of tube ice cutter.
