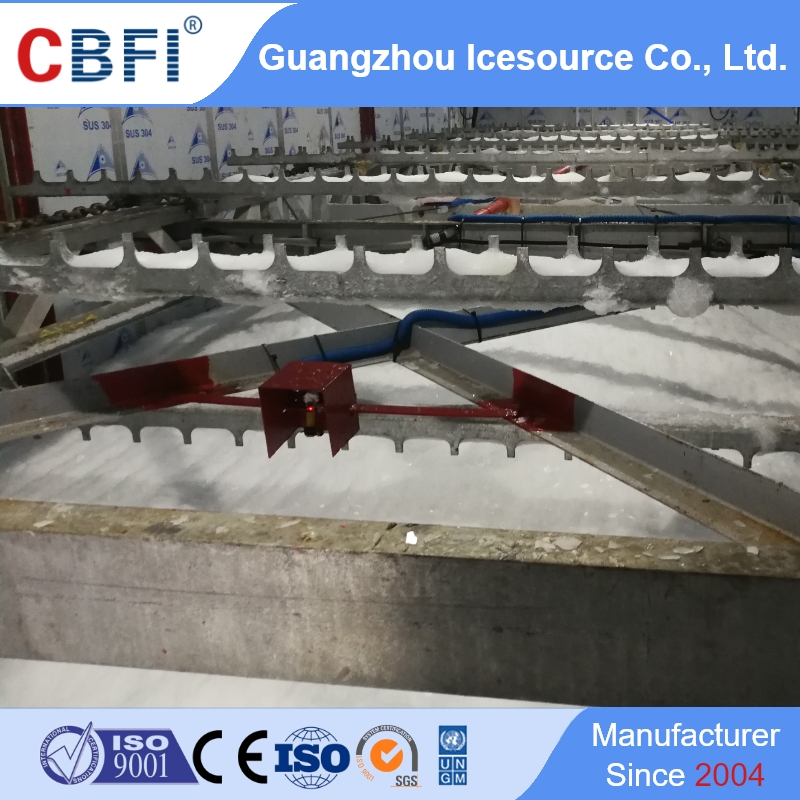

The ice rake system is generally used in conjunction with ice making equipment and installed in the ice storage cold storage. It can effectively use the space for ice storage. When a large amount of ice is needed in a short time, the ice storage cold storage can automatically deliver ice to meet the demand for ice.

Working principle of ice rake

Take ice supply from a flake ice machine as an example.

During the operation of the flake ice machine, the ice rake machine rotates in the reverse direction, and the flake ice will be dropped and spread horizontally within the full length of the ice storage room. The ice rake lift device automatically adjusts the vertical height of the ice rake machine. Upper and lower limit and safety protection switch. When the ice compartment is full of flake ice, the lifting device stops rising, and the flake ice machine stops ice making.

During the ice out cycle of the ice storage, the lifting device of the ice rake automatically lowers the ice rake, and the ice rake rotates in the opposite direction to rake the flake ice into the horizontal conveyor screw under the ice baffle. When the ice storage compartment is empty, the lower limit switch will act to stop the lifting device. Ensure the safe and reliable operation of the ice storage.

Composition of ice rake machine

It is composed of steel frame, transmission chain, transmission sprocket, reducer and slider. The motor power of the driving device is 4KW. During the operation of the flake ice machine, the ice rake machine rotates in the reverse direction, and the falling flake ice is spread horizontally in the ice storage room; during the ice storage cycle, the ice rake machine rotates in the reverse direction to rake the flake ice under the ice baffle plate Horizontal conveyor screw machine. The height of the ice rake is adjusted and fixed by the lifting device.

What is the highlight of Bingquan's ice rake system?

1. The ice rake machine adopts modular design, which is easy to assemble and maintain; the parts are processed by CNC machine tools with high precision and avoid welding defects.

2. Using high-precision bearings imported from Japan, the mechanism runs smoothly and has a long service life.

3. One key to start the ice storage mode. After the ice cubes fall into the ice storage, the ice rake will automatically operate according to the signal instructions provided by the sensor, and will automatically stop when the ice storage reaches the maximum.

4. One-button start of the ice release mode, the ice blocking door opens automatically, the ice rake runs automatically according to the signal instruction provided by the sensor, and automatically stops after the ice output is completed, and the ice blocking door returns to its position.

5. Intelligent electronic control screen, simple and easy to use.

6. Monitoring equipment is installed in the cold storage, which can check the working conditions of the equipment in real time, which is convenient for maintenance and management and safe production.

Application scope?

The ice rake system is generally used for concrete cooling: it can be applied to large hydroelectric dams, nuclear power, high-speed railways, high-rise building foundations, and large-volume castings require temperature-controlled concrete. Bingquan's flake ice system, ice rake system and ice transport system are widely used in concrete pre-cooling projects at home and abroad.
