Through the continuous introduction and popularization of various ice-making equipment and cold storage, I believe everyone is familiar with tube ice machines, ice block machines, and cube ice machines. In this issue, Bingquan will introduce a new friend to you-the ice rake system!

What is ice rake system?

The ice rake system is generally used in conjunction with ice making equipment and installed in the ice storage cold storage. It can effectively use the space for ice storage. When a large amount of ice is needed in a short time, the ice storage cold storage can automatically deliver ice to meet the demand for ice.

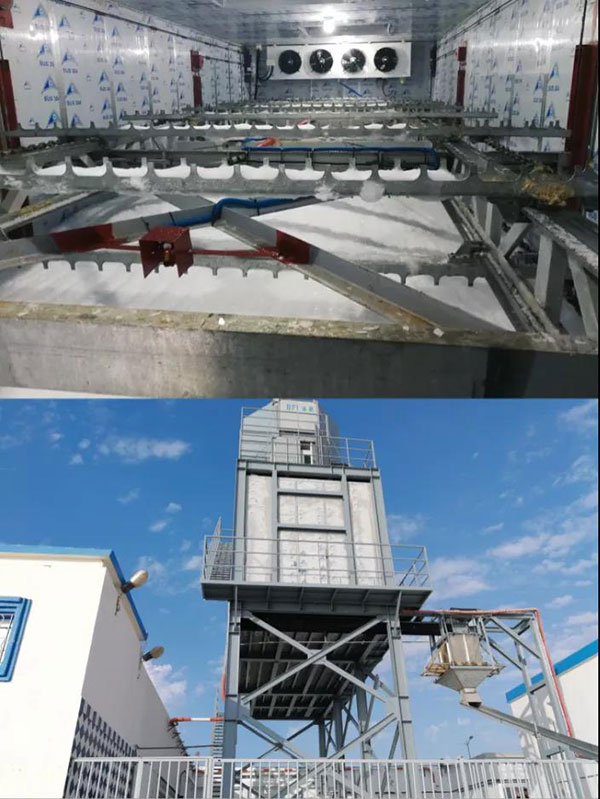

The ice rake system is generally used in: adding ice to dock fishing boats, ice factory sales, industrial ice, chemical dyes, mine ice, and concrete construction. Among them, the ice for concrete construction can be applied to large hydropower dams, nuclear power, high-speed railways, and large-volume foundations for high-rise buildings. Temperature-controlled concrete is required.

Working principle of ice rake?

Take ice supply from a flake ice machine as an example.

During the operation of the flake ice machine, the ice rake will rotate in the opposite direction, and the flake ice will be dropped, and the ice rake will be spread horizontally in the full length of the ice storage room. The ice rake lifting device automatically adjusts the vertical height of the ice rake. Upper and lower limit and safety protection switch. When the ice compartment reaches the maximum ice storage capacity, the lifting device stops rising, and the flake ice machine stops ice making.

During the ice output cycle of the ice storage, the lifting device of the ice rake automatically lowers the ice rake, and the ice rake rotates in the reverse direction to rake flake ice into the horizontal conveyor screw under the ice blocking door. When the ice storage compartment is empty, the lower limit switch will act to stop the lifting device. Ensure the safe and reliable operation of the ice storage.

Ice rake system composition

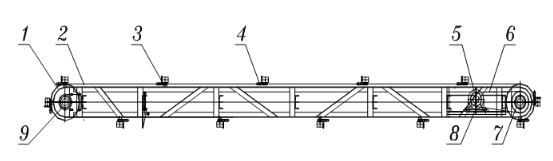

⑴ Ice rake sprocket ⑵ Ice rake shelf ⑶ Upper and lower sliding blocks

⑷ Chain ⑸ Reducer (with motor)

⑹ Transmission chain⑺ Transmission large sprocket⑻ Transmission small sprocket

Highlights of Ice Spring Ice Rake System

1、 The ice rake adopts a modular design, which is easy to assemble and maintain; the parts are processed by CNC machine tools with high precision and avoid welding defects.

2、 Using high-precision bearings imported from Japan, the mechanism runs smoothly and has a long service life.

3、One key to start the ice storage mode. After ice cubes fall into the ice storage, the ice rake will automatically operate according to the signal instructions provided by the sensor, and will automatically stop when the ice storage reaches the maximum.

4、 One-button start of the ice release mode, the ice blocking door opens automatically, the ice rake runs automatically according to the signal instructions provided by the sensor, and automatically stops after the ice output is completed, and the ice blocking door returns to its position.

5、 Smart electric control screen, simple and easy to use.

6、 Monitoring equipment is installed in the cold storage, which can check the working conditions of the equipment in real time, which is convenient for maintenance and management and safe production.
